Static Line Cable Systems
Safe@Heights are the leaders in the design, installation, inspection and certification of static line cable systems. Also known as Horizontal Life Lines (HLL), they are one of the safest and most efficient fall arrest systems on the market when you are not able to install a permanent guard railing. Our highly trained and experienced team can help you design a system that is compliant, safe and fit for purpose. Our team of professional installers who are all trade qualified and experienced carpenters will ensure your system is installed correctly first time every time.
Please click on the video to the right to watch our static line cable systems in action!
To find out more about our systems please read below or contact us via our enquiry page.
The No.1 Height Safety
Company in Queensland
Watch our video to discover what makes us unique!
Permanent Static Line
The safest type of fall arrest system is a stainless steel static line cable system. Also known as a permanent static line or HLL (Horizontal Life Line), they can be installed in almost any configuration to provide continual attachment when working on or close to a fall edge. There are many different systems on the market from all the major height safety manufacturers with each one having its own unique advantages. Safe @ Heights is an authorised installer of all the major brands of height safety systems from Capital Safety, SAYFA Systems, Ferno and Honeywell. We are experts in designing and installing the right static line system for your particular requirements. As part of the design process we take into account all the major risks, the building design and reason for access, to develop a unique height safety solution which is custom designed for your particular needs.
Working at heights and static line systems
A properly designed system will comply with AS1891.2, AS1891.4 and the Managing the Risk of Falls at Workplaces Code of Practice. There are also certain duties placed upon the PCBU by the Work Health & Safety Regulation 2011 which must also be taken into consideration such as training and induction requirements and rescue.
One of the legal duties placed upon the owner of a fall arrest system by the Work Health and Safety Act is that of providing relevant information and training on how to use the system safely. As a minimum you must provide information regarding the type of system, when it was installed, the rating of the system, when it was last inspected and how to correctly attach. This information should be part of the procedure manual you have for the system. If a worker was to have an incident, it is up to you as the owner to provide that you provided sufficient information and training during the induction for that worker to have been able to work safely. To help with this, we have induction videos on how to use a static line system safely, including how to attach, what equipment to use and the three methods of attachment. To read more about the methods of attachment click here

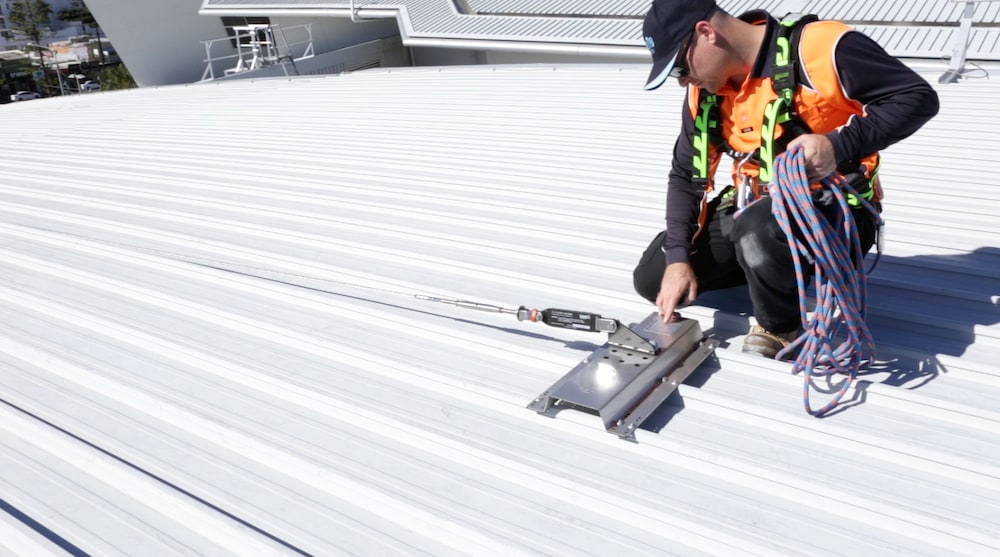

TRAVEL8 Horizontal Life Line installations
We are able to supply a system from any of the leading manufacturers however in general for roof and concrete mounted static line cable systems we recommend the SAYFA Travel8 system. The Sayfa systems are tried and tested in almost every type of application and environment. They are safe, reliable and durable.
To speak directly with one of our height safety experts who can advise you on the most appropriate system for your needs please do not hesitate to contact us
How to safely use a Static Line System
The following instructions have been taken directly from our induction and training video.
A cable system must have a minimum rating of 21kN (2 person use) and this must be clearly noted on the certification sign and its inspection tag. If a cable does not have a clearly marked rating, do not use it.
It is important that before you begin to use a cable system that you understand the design of the system and how it was intended to be used. Before you use a system, you should read the Procedure Manual which will have this information or watch the induction and training videos if this is available. There are four vital areas you should understand about a system before you use it
- The instructions on how the system should have been installed
- The lay out or plan of the system
- The certification date of the system
- What type of shuttle or attachment device it requires and how to correctly attach it
Before you attach to a static line cable system, it is vital that you check the system has been installed correctly and is in good condition. Never assume that a cable system has been installed correctly and is fit for use. Always check the system first before attaching. A good indicator if a system is not fit for use is if the cable is slack and is touching or almost touching the roof. This may indicate that the system has been deployed or damaged. If this is the case you should stop work and notify your supervisor or system owner. Do not use the static line system until it has been inspected and certified as safe to use.
Prior to commencing work, review the roof plan. This will show you the location of the system. It will allow you to correctly select the right equipment and to also plan your route before you get onto the roof.
As part of your access and work plan, you should take into consideration if the position of the system will allow you to safely complete your intended work. If you determine that the current system will not allow you to work safely, do not proceed. Immediately notify your supervisor. Alternative safety measures will need to be employed. Any new control measures must be documented in you SWMS prior to commencement.
Once you have planned your work, check your equipment and correctly fit your harness. Ensure that all your equipment is in good condition and has been certified within the last 6 months. You must only use certified equipment that is in good condition and is fit for purpose.
All static line systems must be certified every 12 months. You will find this information recorded on the System Sign located at the entry point to the roof. If the system has not been certified within the last 12 months do not use the system and report this to your supervisor.
When attaching to a static line system you must only do so via the approved system shuttle. The shuttle has been designed to allow continuous attachment when moving along the cable by passing directly through the intermediate and corner brackets.
Attaching the TRAVEL8 Shuttle
To attach the shuttle, first inspect and insure that it is in good condition. Remove the karabiner and open the shuttle cable lock. Place the shuttle over the cable and shut the lock. Check and ensure that it has closed correctly over the cable. Connect the karabiner. Make one final check that the shuttle is correctly connected to the cable and in the locked position. We have a great video on how to do this correctly.
A static line system should always maintain a set distance from the fall edge. However this may not always be the case. The distance between the cable system and the fall edge may vary. If this occurs, you will need to constantly re-evaluate your position and may need to change your attachment method. Therefore it is recommend that you adhere to the following three rules,
- When moving along a cable system stay within 1m of the cable while attached via a fixed 2m lanyard or a via a rope line that has been adjusted to 2m or less
- When commencing work in a new location along the static line, complete a new assessment to determine what attachment method you should use
- Never assume your rope line length is correct. Always check your safe working line length to ensure you are in fall restraint
For further information on our video and induction packages please contact us
Queensland Designed & Made
No matter the reason for access or the location, we can custom design, manufacture and install the right solution for you. One of our Height Safety Specialists is able to provide you with the right advice and make you aware of the legislation you should know and the options that are available to you.
For further information about how we can help you please contact us via our contact page or by calling (07) 3208 5833
